General Description

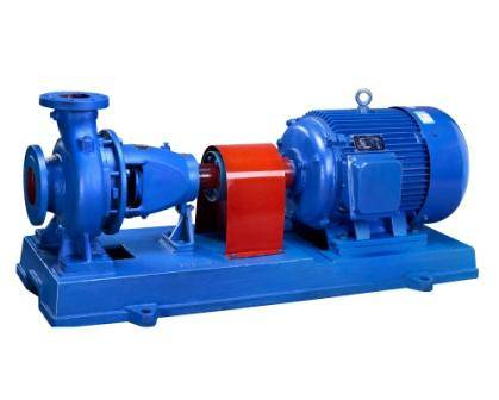

IS pump is horizontal single stage single suction centrifugal pump, delivering clean water or other liquid which chemical and physical feature is similar to clean water. This type of pump widely applied for industry and city water supply and drainage, as well as agriculture irrigation.

IR pump is heat water centrifugal pump, it can be equipped with boiler and heat-changer, as circulating water pump or feed pump, also can be used for water supply and drainage in city and mine, etc.

IY pump is oil pump, suitable for delivery none corrosive liquids and petroleum without solids and the viscosity less than 120Cst. It also can be used to deliver clean water or other liquid which chemical and physical feature is similar to clean water.

Performance range
Capacity:6.3~400m3/h
Head:5~125m
Temperature: less than 80°C for IS and IR pump, less than 130°C for IR pump
Pressure: less than 0.6MPa

Construction feature
Full back pullout design
Packing seal or Mechanical seal

Material:
Cast iron, can be other materials as per customer's requirement.
