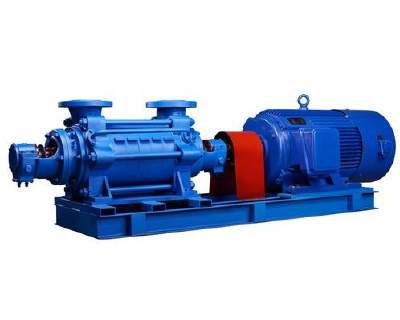

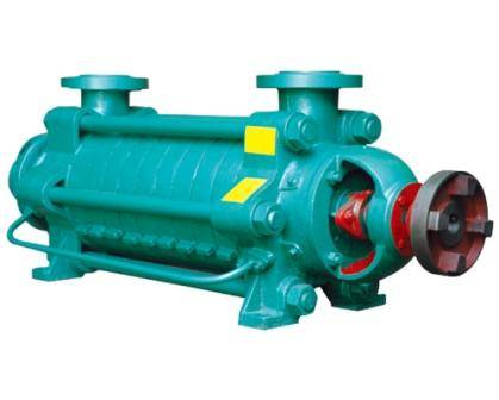

CRDG series Multi-Stage Boiler Feed Pump

CRDG series horizontal Multi-stage boiler feed pump can deliver clear water without solid particles or other liquid which the physical and chemical feature is similar with clear water. It is suitable for boiler feed water or feed water of high pressure boiler. The inlet pressure of pump is less than 0.6MPA

Credo model sample for Multi-stage pumps:

CRDG25-80*10

CR: refer to Credo Pump.

DG: refer to Multi-stage boiler feed pump.

25: refer to design capacity is 25m3/h.

80: refer to designed single stage head is 80 M.

10: refer to stage number is 10 stage.

OPERATING PARAMETERS

• Capacity:  up to 320 (m3/h)

• Head: upto 1500 (m) (4920 Feet)

• Temperatures to 150°C  (300 °F)

SERVICES

• Primary Water Supply – Fresh water or Sea water

• Mining Processes - Solvent Extraction/Electro-Winning (SX/EW), Dewatering, Tailings & Post
  Processed Solutions

• Oil & Gas Production – Onshore, Offshore and Pipeline

• Pulp and Paper

• Municipal Water & Wastewater

• Agriculture - Irrigation.
