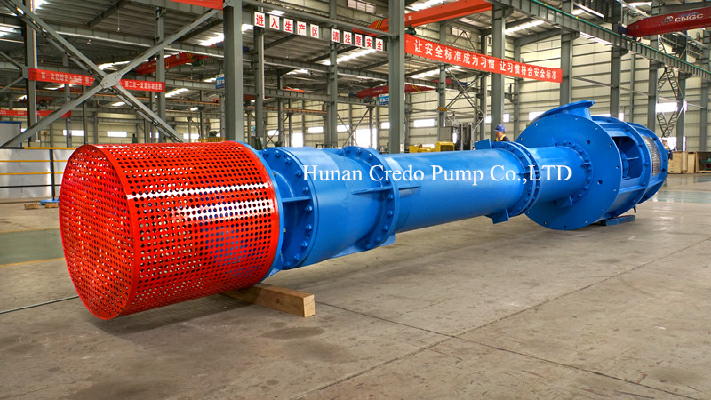

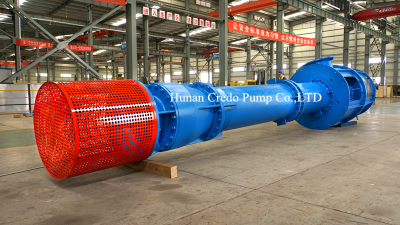

CPLC series Vertical Turbine Water Pump with long shaft

Performance Range

Capacity: 60-10000m³ /h

Head: 10~220m

Instruction of pump type

300CRLC2-50A

300: Outlet diameter is 300mm

CR: Company Code, means produced by CREDO PUMP

LC: Vertical long-shaft pump

2: Impeller numbers (No indication, when only one impeller)

50: Max head is 50m

A: A,B,C separately represents that outer diameter of impeller is changed the first, the second and the third time.

Structure

  The type CRLC vertical long-shaft pump is installed with single foundation, its inlet is vertical downward and outlet is horizontal. The pump and the motor are directly connected. The rotation of pump rotor is counter clockwise looking from the motor to the pump; the main features are as following

1.        It is fine designed with hydraulic design software. It makes impeller and other wearing parts have a long life because of anti-abrasive impeller and Diffusor. The pump is not only reliable, safe, steady but also saving energy.

2.        There is filter in pump inlet with proper hole, this can not only prevent impurity entering pump to damage pump but also decrease inlet loss and increase pump efficiency.

3.        Impeller adopts balance hole to balance axial force. There is replaceable seal ring in front and back cover board of impeller to protect impeller and pump.

4.        Pump middle shaft, water column and guard pipe are multi-burl, middle shaft uses technology of sleeve coupling. Water pipe can be more or less for different inundated depth according to user’s requirement. Impeller and Diffuser are multi-stage for different head.

5.        Water pipe is connected by flange with guide bearing in its middle. Pump guide bearing adopts ethane or THORDON bearing, it can also adopt rubber (when the temperature of liquid is over 55).Shaft is protected by guard column, the guide bearing should be supplied with exterior cooling lubricating water, while delivering sewage.

6.        The remaining axial force of pump and the weight of rotor parts are borne by thrust bearing in motor seat or motor with thrust bearing. The thrust bearing is lubricated by dilute oil and cooled with exterior water. The thrust bearing can have element for monitoring temperature.

7.        Pump shaft seal adopts packing seal, there is replaceable shaft sleeve in shaft seal and guide bearing to protect shaft and it is convenient to adjust axial location of impeller by nut in bearing parts upper end or pump coupling.

8.        Pump can be equipped with controller which can automatically start and stop pump according to liquid level, give an alarm for over loading and control many pumps in long-distance. There is automatic exhaust system for pump with diameter over 500mm.
